Timing Belt Welding Machine Pneumatic Type
- Commodity name： Timing Belt Welding Machine Pneumatic Type
- Product Details
-
Timing Belt Welding Machine Pneumatic Type
For belt width less 200 mm.

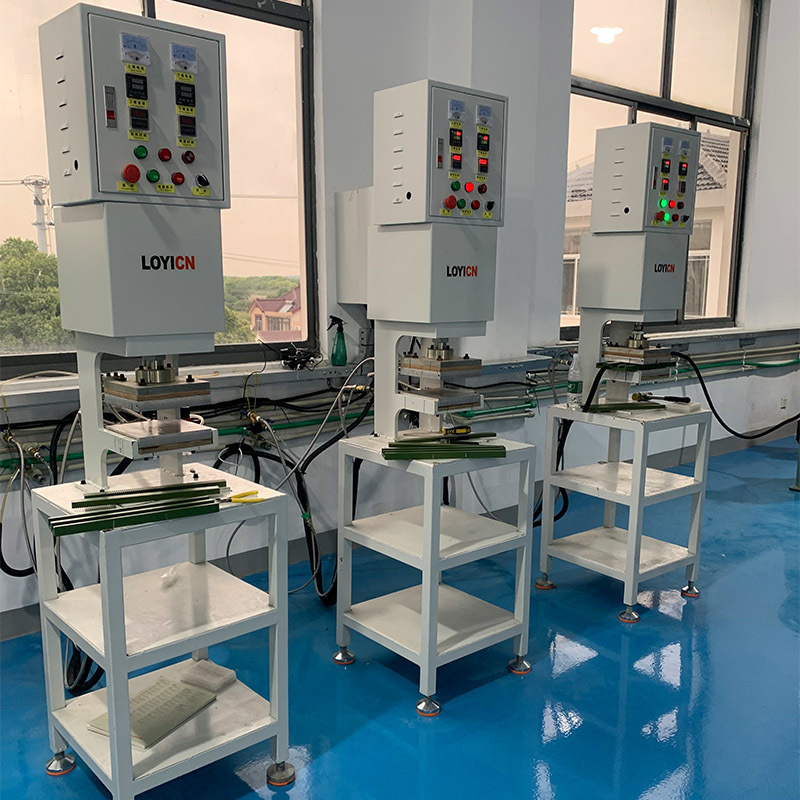

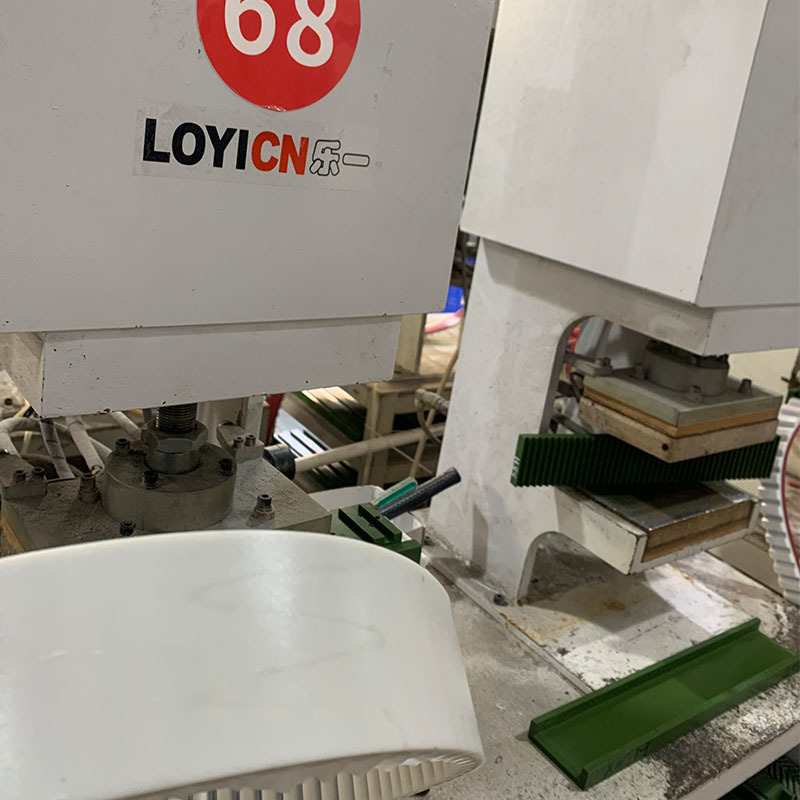

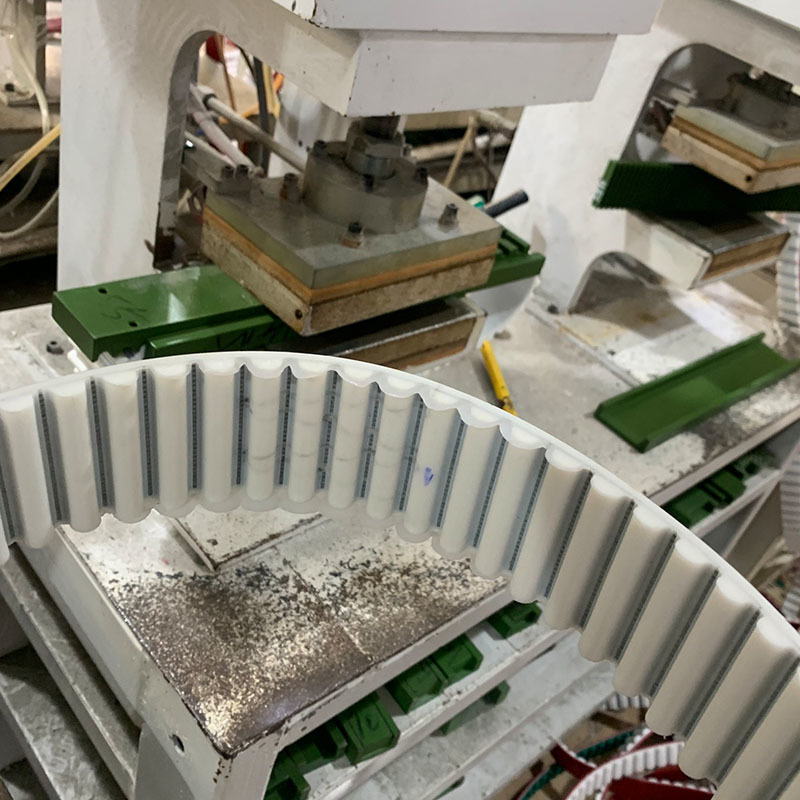

LOYICN Pneumatic timing belt welding machines at client factory.
Performance.
Application :This machine is for jointing timing belts in a ring.Such as T5, AT5, T10, AT10, 5M,8M,S5M, S8M, H, L,T20,AT20,etc.
Standard belt widths:100 mm ,150 mm and 200 mm,special sizes can be customized.
Standard belt lenth : 900 mm. Special length,such as 200 mm, 250mm ,please advise before ordering.
Features&Benefits：
- Automatic control from heating to cooling.After putting the belt,and press ' start ' button, no other operation is required.
The operation is simple. Workers can operate multiple machines at the same time to improve efficiency.
- The machine adopt cylinder and a movable universal controller to make the pressure higher and even on the heating platen.
Keeping the upper and lower heating platen level even to make the belt thickness of joint part uniform. High balance and high precision.
Cylinder easy maintenance and install.Keeping the working environment clean.
3.The welding molds are made of #718 high-quality mold steel, and the surface is sprayed with environmentally Teflon coating.
High quality of mould, the flatness of joint belt is high. And can prevent the belt from sticking to the mold.
4. Welding mold can choose ‘Adjustable Mold’ and ‘Fixed Mold’. ‘Adjustable Mold’ suitable for various belt widths. For example, one mould can used for belt with a width of 25-200mm. Reduces cost investment.
Technical Datasheet:
Model
LYTW100
LYTW150
LYTW200
Processing Max. Belt Width
100 mm
150 mm
200 mm
Heating Platen Size
150*200 mm
200*200 mm
250*250 mm
Joint Mold Size
120*260 mm
170*280 mm
220*300 mm
Working Length
800 mm
800 mm
900 mm
Working Voltage
220V Single phase,380V 3phase or customized
Frequency
50~60HZ
Pressure System
Welding pressure provied by pneumatic cylinder
Pressure
6~8 bar
Temperature Range
40 ~ 230 ℃
Power
4.5 KW
Cooling Methods:

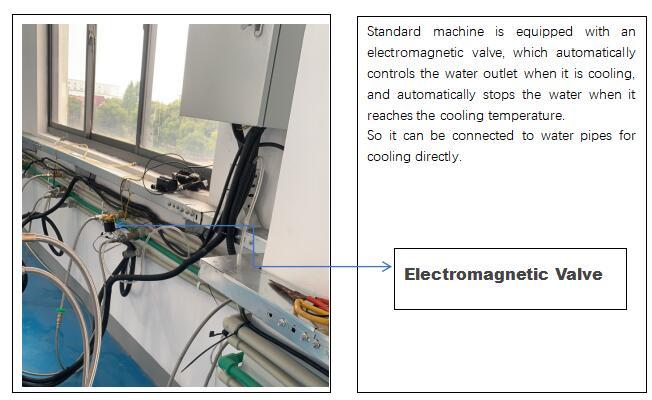

1.Standard cooling method.

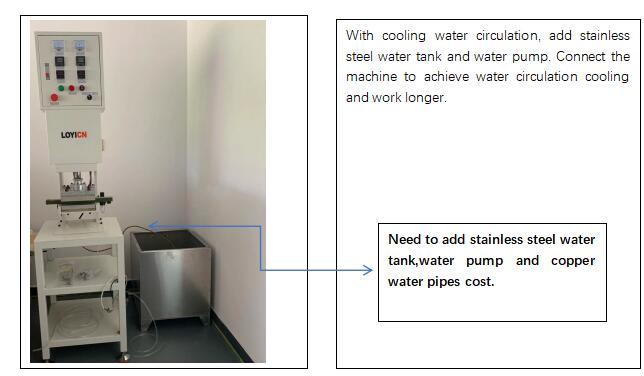

2.Self-Circulation Water Cooling System.2.Self-Circulation Water Cooling System.
Performance:

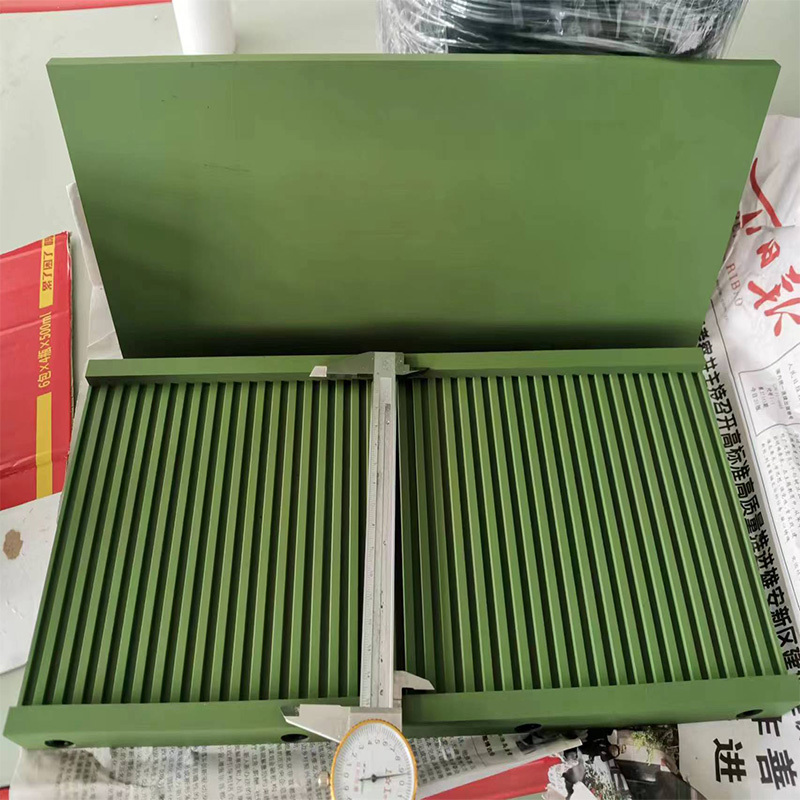

Timing Belt Jointing Mould Choose
- Belt width adjustable moulds (Economic)
Belt width fixed moulds ( High efficiency)
