New arrival belt guide machine for 3000 mm wide PVC PU belt strip welding
New arrival belt guide machine for 1m wide PVC PU belt strip welding.
Jul 10,2024
New arrival belt guide machine for 1m wide PVC PU belt strip welding

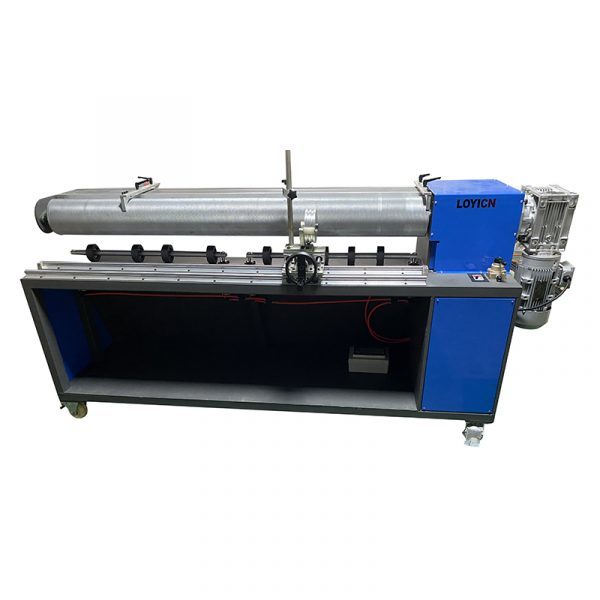

Belt processing machine – Guide machine is a machine to use on small strip for welding on the conveyor belts.
New arrival is 1 m working roller , old 720 mm working roller will stop production from 1st June , 2017.
Components:
Guide machine is made of frame, motor, frequency inverter, anititive roller, press pulley,guide pulley, worktable, welding machine etc.
Specifications:
Belt width(max): 2000mm
Belt material: PVC/ PU
Belt thickness(max): 10 mm
Machine Power : 550W (recommend use heat gun 3000 W)
Roller width: 1000 mm
Running Speed(max): 0.2 m/s
Machine Net Weight: 230 KGs
LOYICN belt guide machine features :
1. High working efficiency , about 8 m long per min ;
2. For different guide, use different mould , standard with machine size is 6×4 8×5 10×6 and 13×8, others can make accords to your requirements, like 17×11 etc.;
3. Can use for endless belt;
4. High quality frequency inverter , easy to change the working speed ;
5. Grinding head is optional, for welding on fabric side use ;
6. Wheel- base design, machine can be moved easily;
7. Welding System: heat gun (standard offer without heat gun)
8. Guide Mould can be easy change, and make special accords to your requirements
9. Horizontal and Vertical direction move system, can easy control the welding head position
10. Use motor and high quality frequency inverter to control the roller running and speed
11. The shaft can control the belt running on the belt can pause the welding without power off the power
12. Grinding head is optional, for welding on fabic side use
