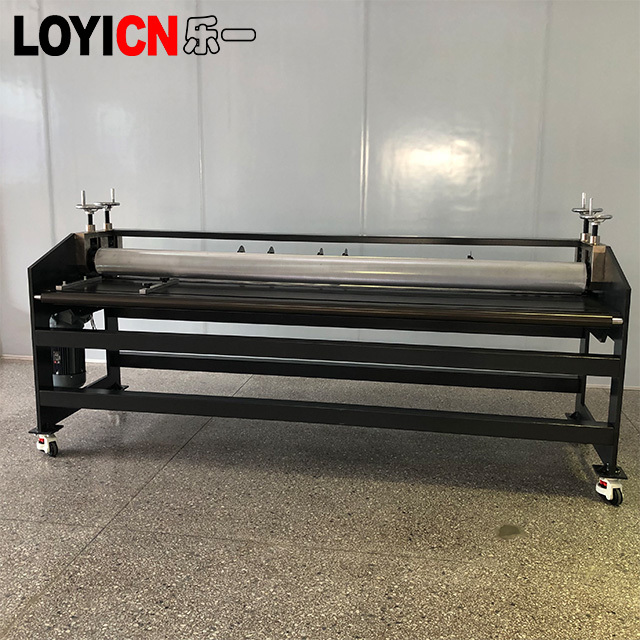

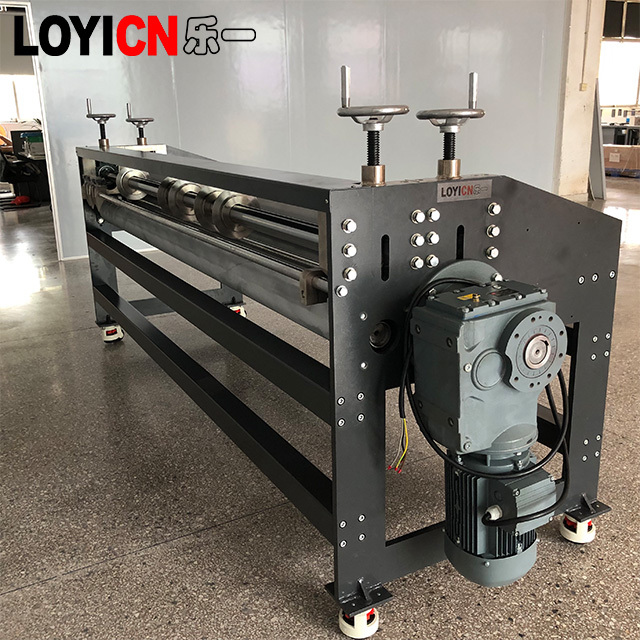

Conveyor Belt Cutter for 2400 mm Wide Rubber Belt

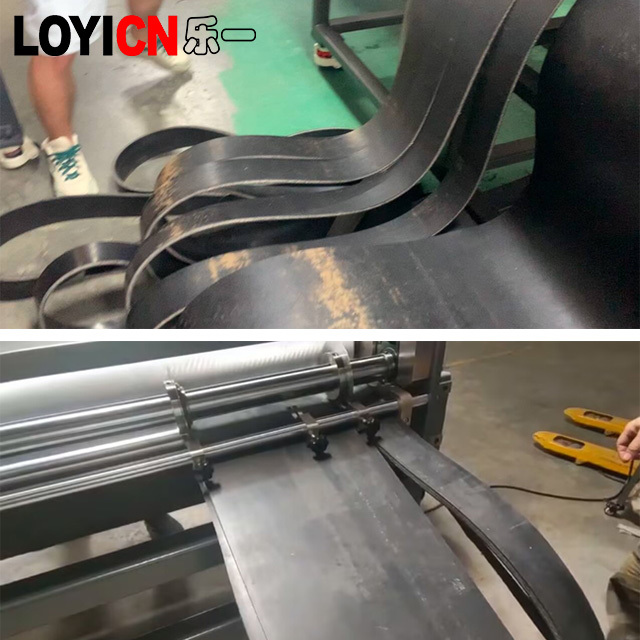

LOYICN rubber belt slitter cutting machine is designed for easy longitudinal cutting of rubber belt etc.

Feature:
1.Strong axis (round or square), accords to different weight belt rolls and widths, we can make special accords to order.
2.Accords with different working requirements, the cutting speed is adjustable.
3.Accommodates belts up to 2 meters or 3 meters. Wider available on custom order.
4.Guide rail prevents any lateral movement resulting in a perfect, straight cut of the belt, with a constant width.
5.Electrical control panel including the speed control, frequency inverter, air clutch system control and emergency stop button.
6.The complete assembly is controlled by a control panel which is executed with speed regulation, frequency controlled cutting speed, frequency controlled rewinding, frequency controlled back winding.
7.Mechanical length counter (digital length counter is optional), enables the cut length to be checked when cutting belt.

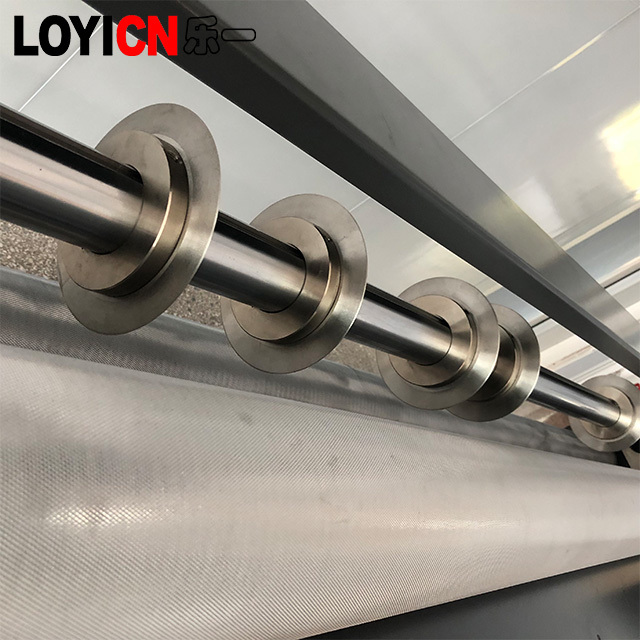

8.Fix the blade with the knife mounted on the movable toolbar. Standard equipped with 5 knives (more qanutities optional).
9.Custom Power supply.

FAQ

01) Q: Normal delivery time?
A: We have table produce line, hot sale products normally HAVE STOCK. If customized, need about 30 working days

02) Q: Will you test the machine before shipping?
A: Yes, each machine, we will install and test before shipping. And testing pressure is higher than working pressure.

03) Q: Can you print our logo or without any logo?
A: It’s no problem OEM. Before order, please send us the clear document of your logo, also the authorization paper to allow us to print your logo.

04) Q: Whether can visit your workshop and to see how to process the machine?
A: No problems, you are always welcomed to visit us, before order or before shipping.If need to see how to process the machines, please inform us what type machines you want to see, we will try to prepare the similar machines ready before you come.

05) Q: What's the payment term?
A:Normally we accept T/T 30% as deposit before production, pay the rest before delivery.

In the industrial world, especially in the realm of conveyor systems, a heavy duty belt slitter for rubber conveyor belt is an indispensable tool.

1. Design and Construction

This type of belt slitter is engineered with robustness in mind. It typically features a high - quality steel frame that provides exceptional stability during the cutting process. The blades used in the slitter are made from premium - grade materials, such as hardened steel. This ensures a sharp and precise cut, even through the tough and thick rubber conveyor belts. The slitter is also designed with adjustable cutting parameters, allowing operators to customize the cutting width according to specific requirements.

2. Functionality

The heavy - duty belt slitter is highly efficient when it comes to slicing rubber conveyor belts. It can handle belts of various widths and thicknesses with ease. Whether it is a narrow - width conveyor belt used in small - scale material handling systems or a wide and thick belt in large - scale industrial plants, this slitter can get the job done. The cutting mechanism is smooth and consistent, minimizing the risk of jagged edges or uneven cuts that could potentially affect the performance of the conveyor belt.

3. Safety Features

Safety is a top priority in industrial equipment design. These belt slitters are equipped with safety guards to protect operators from accidental contact with the sharp blades. Additionally, there are often emergency stop buttons that can be easily accessed in case of any unforeseen situations. Some advanced models also have sensors that detect abnormal vibrations or forces during the cutting process, automatically halting the operation to prevent damage to the equipment and ensure the safety of the operator.

4. Applications

The heavy duty belt slitter for rubber conveyor belt finds wide applications in industries such as mining, manufacturing, and logistics. In mining, conveyor belts are constantly in need of repair or replacement due to the harsh working conditions. The slitter can be used to cut new belts to the appropriate length and width, as well as to trim damaged sections of existing belts. In manufacturing plants, it helps in customizing conveyor belts for different production lines. And in the logistics industry, it ensures that conveyor belts are properly cut for efficient material transportation within warehouses and distribution centers.

5. Maintenance

Maintaining the belt slitter is relatively straightforward. Regular cleaning of the blades and the overall machine helps to prevent the build - up of rubber debris, which could affect the cutting performance. Lubrication of the moving parts at recommended intervals ensures smooth operation. Additionally, periodic inspection of the blades for wear and tear and replacement when necessary is crucial to maintaining the high - quality cutting capabilities of the slitter.

In conclusion, a heavy duty belt slitter for rubber conveyor belt is a crucial piece of equipment for any industry that relies on conveyor systems. Its reliable design, efficient functionality, and safety features make it an ideal choice for handling the cutting needs of rubber conveyor belts.
