GEN 3 Air cooled high speed vulcanizing hot press for 300 mm wide PVC PU belt LYPA300-B
- Commodity name： GEN 3 Air cooled high speed vulcanizing hot press for 300 mm wide PVC PU belt LYPA300-B
- Product Details
-

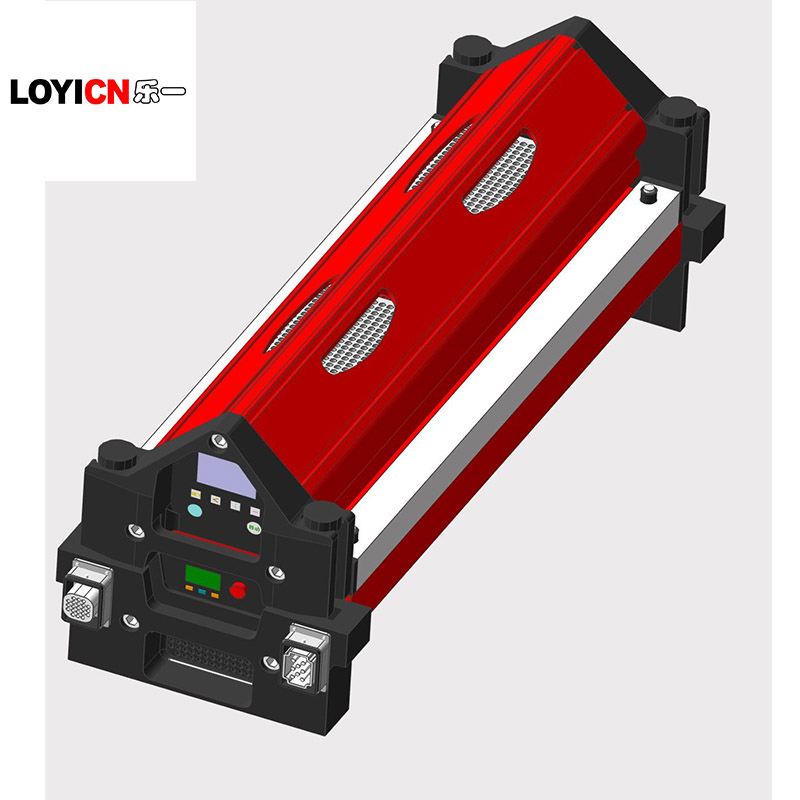

GEN 3 Air cooled high speed vulcanizing hot press for 300 mm wide PVC PU belt LYPA300-B
◆ Product description:
Air cooled all-in-one designed splicer is the new generation of splice equipment for belt joint splicing both on site and in the workshop. LOYICN air cool splicing press especially important for on site is reliability of the equipment, less weight,less set-up time, and very short splicing time.
The presses are supplied with a flight case for both storage purposes and also for easy transport to on-site job.
LOYICN Generation 3 Air cooled presses release.
We solve the temperature controller easy broken problems after 3 years + developing test. Spent lot of time and money to find a suitable temperature controller. We also met many problems during the testing processes. For example,the controller do not have problem on the first 1 to 11 months ,but broken on the 12 nd month. Moved it near the high frequency welding machine to test its high-frequency interference resistance ability,etc.Now the temperature controller is very stable and precise.
There are TOP 10 reasons to purchase a LOYICN G3 presses .
1.Heat zone increased from 110 to 150 mm.
2.Independent heating allows user to set different temperatures on tom and bottom.
3.Forced air cooing in top and bottom beams.
4.Forced top and bottom beams.Longer lengths available:72” (1835) and 84” (2150).Max. pressure:3 bar.
5.Voltage 110 V available for 325,625,925 and 1225.
6.Simple controls - easy to input,easy to read.
7.Built-in diagnostics warn user of potential misuse or errors in splicing.Add self checking function,automatically detecting faults,quickly fixing fault locations,faster the after-sales speech.
8.Add overheat protection function,can automatic shutdown when the temperature exceeds 200 degrees
9.Germany air compressor ,SMC brand air pressure controller.Heating plate is special custom made, heating area more uniform and longer life service than others. Air bag have good temperature resistance,not easy to burn and deform.
10.Special customized temperature control meter,more stable and precise.
The first bulk production will be finished on the end of December,2023.
Please feel free to contact our sales for the beginning promotion quotes.
GEN 3 can send different temperature on the bottom performance compare.
Real machine photos:
◆ The unique LOYICN technology ensures global uniform splicing and with its features and benefits:
1. Improved quality, efficiency (speed) and precision
2. Consistent, reliable splice results and superior belt appearance
3. Less shrinkage of fingers, providing stronger, flatter splices
4. No maintenance.
5.12″/24″/36″/48″/60″/72″/84″ available.
6. Voltage: 220 V or 380 V, if you need a special voltage please our sales.
◆ On site benefits include:
1. Short cycle time, approx. 10 minutes or less depending on belt type
2. Lightweight components
3. No water or forced air cooling necessary
4. Less production downtime
5. Easy transport around the plant
◆ Specifications:
Model :LYPA300-B
Effective belt width : 300 mm
◆ Quality assurance:
I. Whole unit 12 months warranty
II. Adopt high quality imported parts :
1.High quality Eurotherm brand controller.Reliable and automatic Temperature Control with time control (in one meter, also you can set by yourself).
2. High quality SMC brand controller.Air pressure controller (set the air pressure and display the current pressure),
3. High quality heating plate from USA.
◆ Air cooling press operation video link:
