LOYICN v belt round belt welding splicing kits
- Commodity name： LOYICN v belt round belt welding splicing kits
- Product Details
-
LOYICN v belt round belt welding splicing kits
Usage For all kinds of Round belts and PU v-belt
Product Details
Brand: LOYICN
Item: LOYICN v /round belt welding splicing kits
Weight: 3 KG

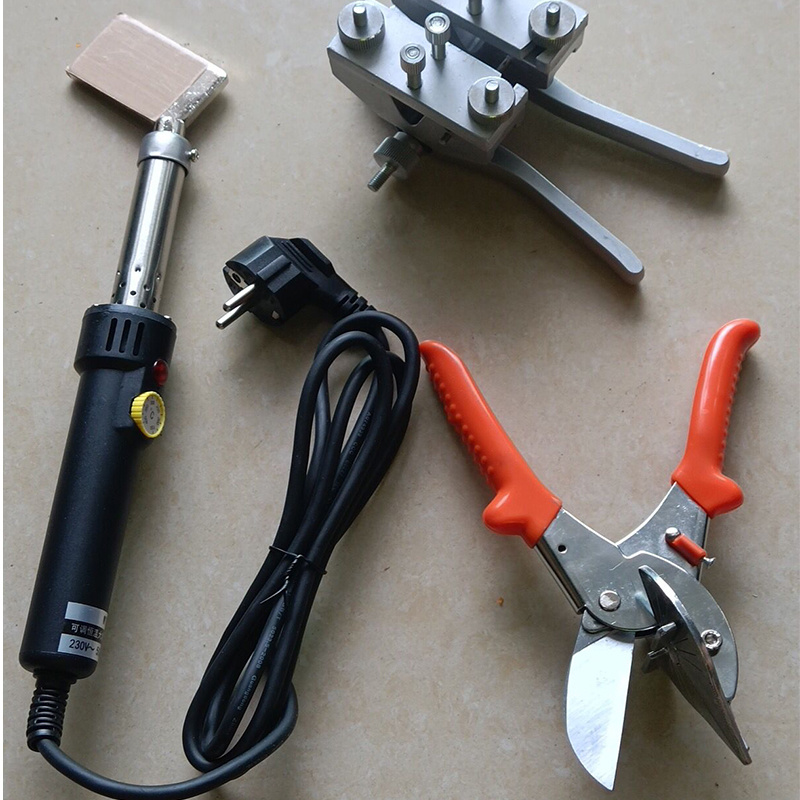

1.Soldering Iron

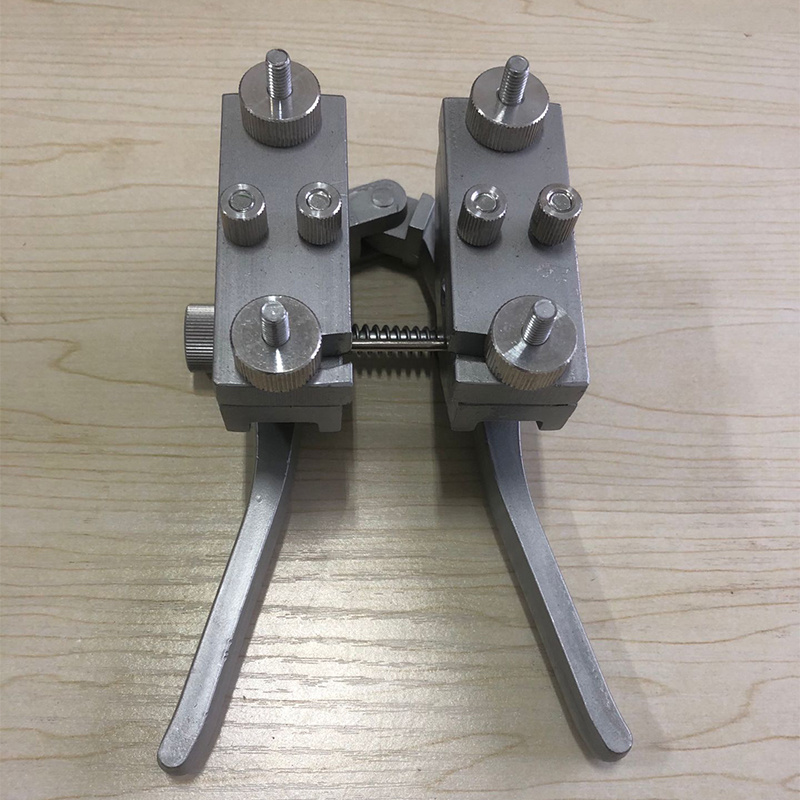

2.Welding Clamp

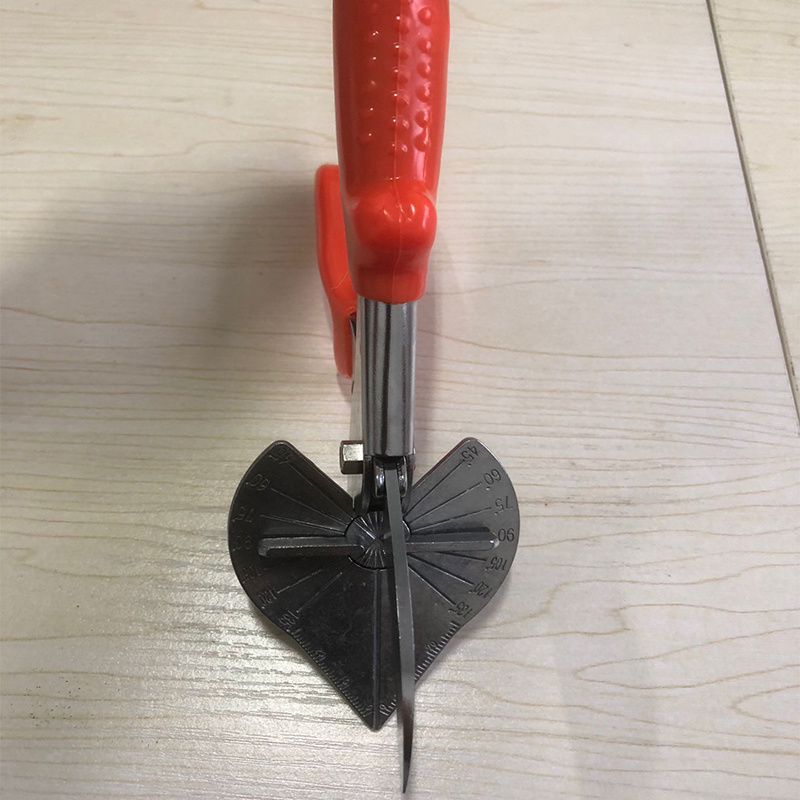

3.Scissors with Skid handle
v belt round belt welding splicing kits
Operating steps:
1) Preheating the soldering iron; cutting the belt by the scissor and make sure the transverse incision is smooth2) Loosen the four big screws of the welding clamp, adjust the height of aluminum plates to put the belt into it.
3) Put the open endless belt into the locating slot (If the belt size is small, adjust the four small screw of clamp to fit it, preset protruding length on both ends of the belt, make the two end belt match perfectly.
4) Place the soldering iron between the ends of belt, gently tighten the clamp ,make both ends completely connect soldering iron.
5) Heating the soldering iron, when the PU are melted approximately 0.5~1mm, whip out the soldering iron, closed the welding clamp by the side screw.
6) After about 3 minutes, take off the belt from the welding clamp.
7) Grinding the surface after made the weld, check if it's finished. if not, please repeat the above steps again.
◆ Our Services :
1. We will reply to any inquiries about this product with 24 hours;
2. We have a well-trained and passionate sales & after-sales service team who speak English;
3.We offer OEM services. We can print you logo on products, customise the retail packaging and other accessories;
4.We have very experienced R&D engineers and we have strong ability to do ODM service.
Welcome to your inquiry!
