Automatic Cutting Machine for Endless 530 mm Wide Timing Belts with Spiral Cut Function



LOYICN Fully automatic endless timing belt cutting machine is available now, faster and more effective, save your time, higher the productivity, lower labor costs.

Features & function:

1. The cutting machine was engineered for cutting timing and flat belt sleeves.

2. Controlled by PLC.

3. Cutting speed is variable (controlled by steady frequency inverter) Digital Display of the cutting width.

4. With touch screen, set cutting width and cutting quantities (automatic type) Cutting data storage is optional (automatic type)

5. Manual cutting shaft angle control

6. Pneumatic system, help to support hold the cutting shaft. One air compressor is built-in. Also can remove it, if already have air compressor in your workshop.Cutting Shaft is exchangeable.

Advantage :

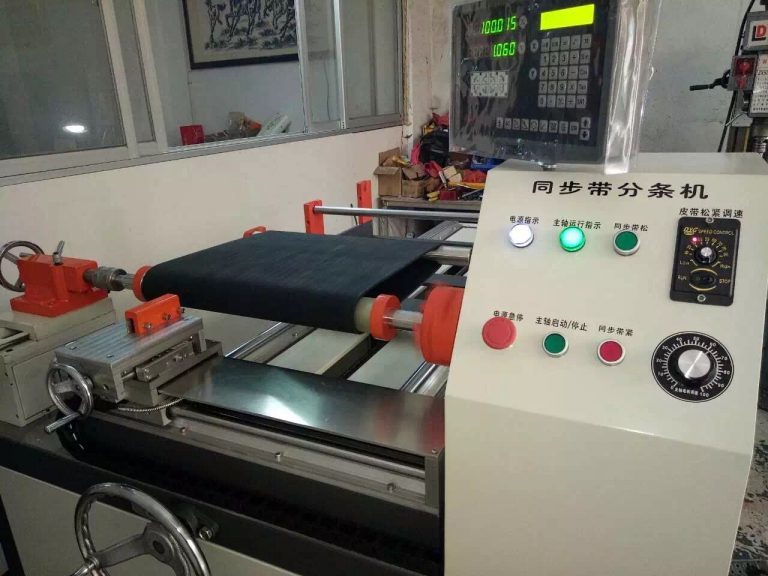

Endless Timing Belt Cutting Machine

The cutting machine was engineered for cutting timing and flat belt sleeves.

The slitter is one of the helpful tools in your shop, it can help you lower labor costs and higher productivity.

The slitter can reduce the storage and costs of belts.

The slitter can supply immediate requirements of your customers. Make a profit.

Have 2 types, semi automatic and automatic:

Semi Automatic suitable for medium quantities cutting Automatic suitable for high quantities cutting

Technical Data:

Maximum Belt Width 500 ~ 1000  mm
Maximum Length 4500 ~ 10000 mm
Minimum Length: 200 mm
Minimum Width: 3 mm
High cutting accuracy ±0.3 mm

Electrical connection: 220 V, single phase, 3 KW. Also can make voltage 110/220 V. With 2 Cutting shafts (35 mm and 65 mm)

Operation:

Controlled by PLC
Cutting speed is variable (controlled by steady frequency inverter) Digital Display of the cutting width
With touch screen, set cutting width and cutting quantities (automatic type) Cutting data storage is optional (automatic type)
Manual cutting shaft angle control
Pneumatic system, help to support hold the cutting shaft. One air compressor is built-in. Also can remove it, if already have air compressor in your workshop.
Cutting Shaft is exchangeable

Safety devices:
Emergency power off
Safety knife cover
Electric protection

Machine frame:

Main body free of assemble. Other parts easy bolts connection. Easy maintenance.
Baking varnish
The feet of machine are adjustable, make the machine horizontally. Suitable for different floor.
Tension Device:

Electric control
Use ball screw & brass nut
Speed is adjustable

Cutting Tool:

Frequency conversion motor, not normal motor (Semi Automatic slitter)
High accuracy Servo motor (Automatic slitter)
Knife holder forward and back, use 4 pcs cross guide rail, move accuracy under 0.01 mm.
Cutting motion via hand lever or automatic (via stepping motor)
Slide move use roller screw:

Automatic Slitter:

Three functions in one machine:

1. Manual, manual cutting & manual control the belt width (When use for big size belt, like 3M 5M, small quantities)

2. Semi-automatic. Setting belt width, manual cutting motion. Suitable for medium size and medium quantities.

3. Automatic. Very helpful for small belt, and high quantities. For example, need cut into 200~300pcs small belt.

Special requirements:

Special belt lengths and belt widths.
Can make workshop version for timing belt manufacturer use, longer belt and wider. For example, belt width 1 m and belt length 10 m
Special working voltage
Special control panel and function requirements, like data output etc.

Excellent Performance:

Continental belt

slitter excellent performance

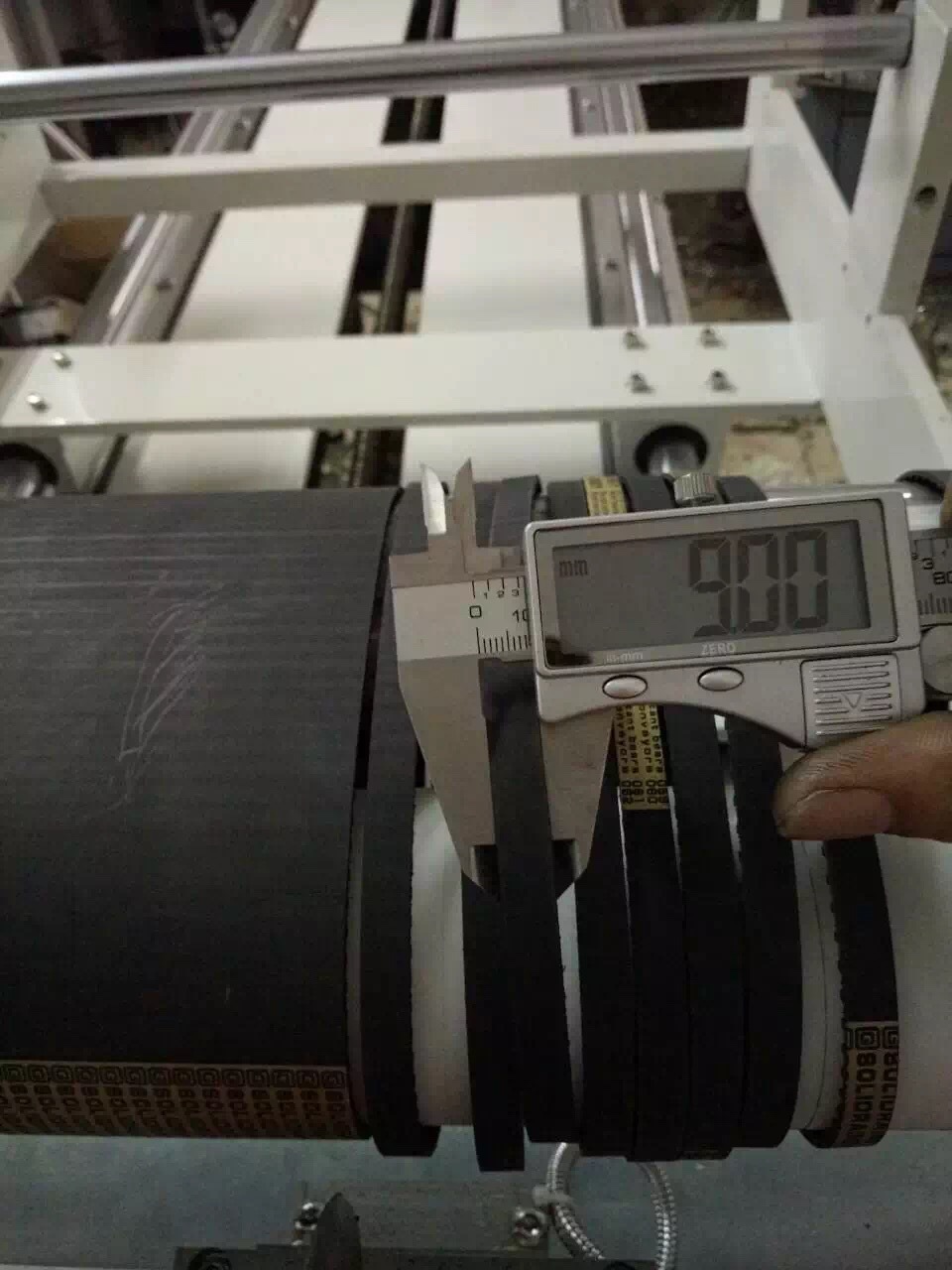

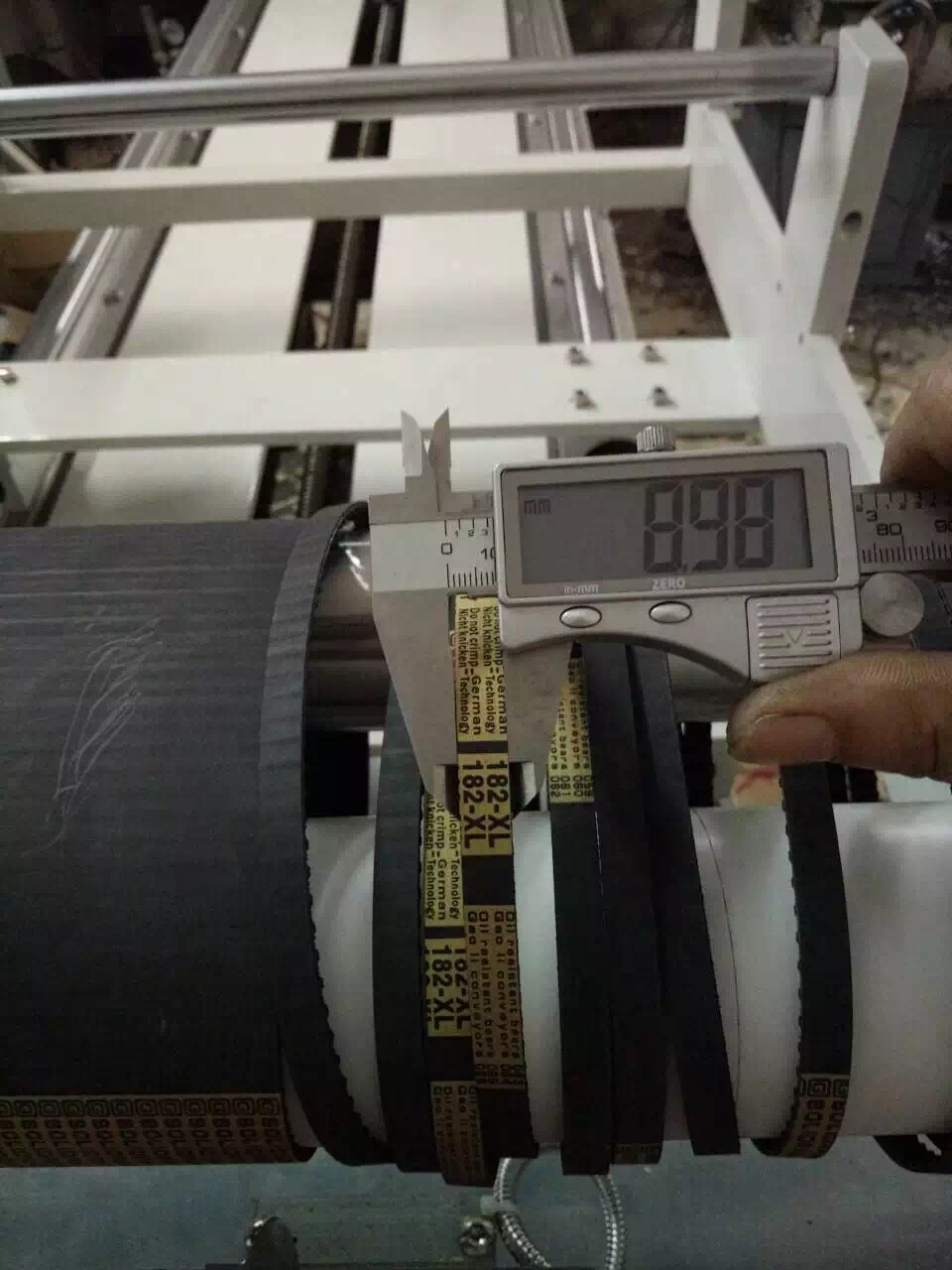

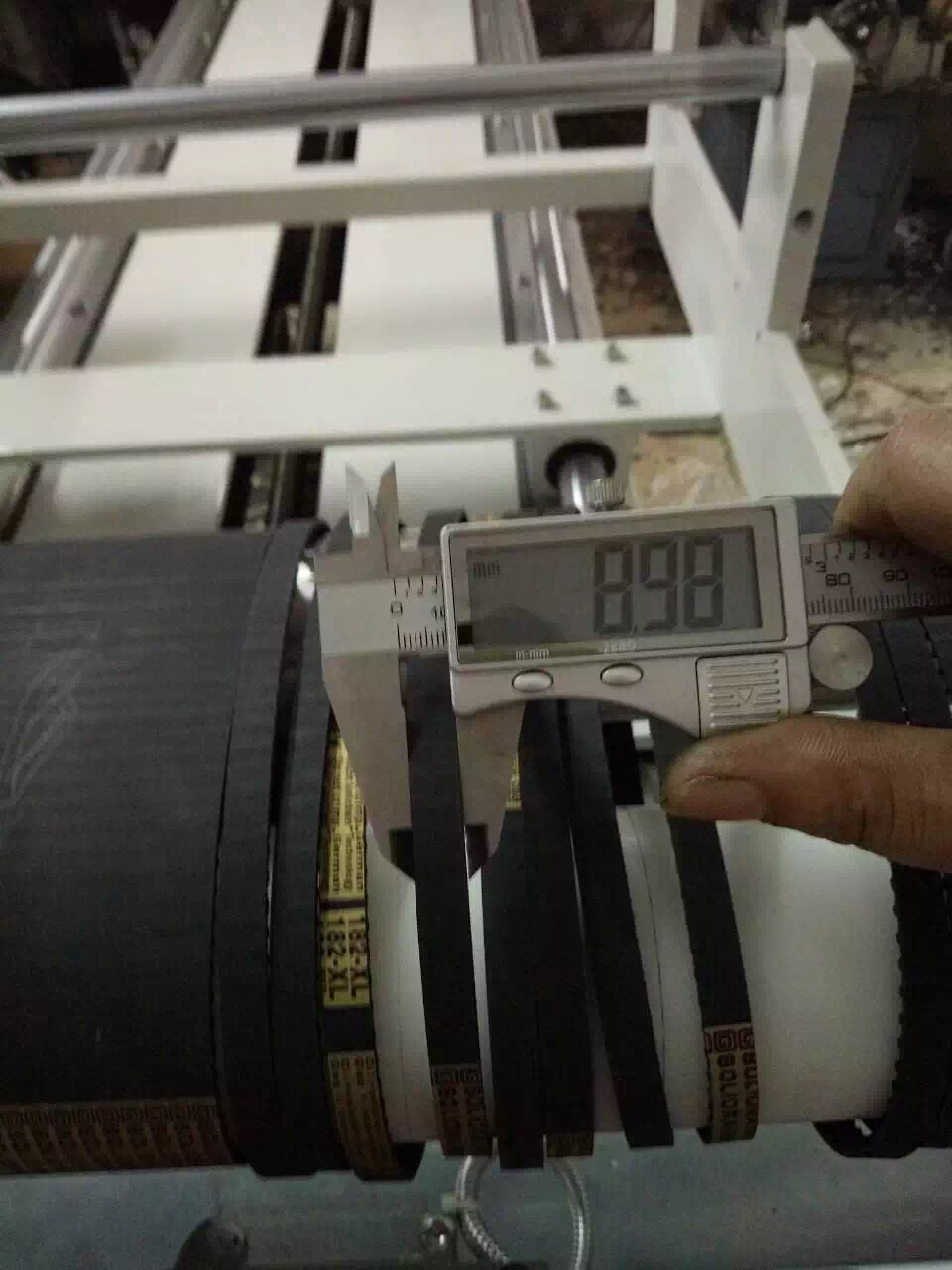

Slitting into 9mm purpose – excellent performance
