Grinding Machine for PU Timing Belt Surface
- Commodity name： Grinding Machine for PU Timing Belt Surface
- Product Details
-
Grinding Machine for PU Timing Belt Surface
Youtube link: https://youtu.be/c-IjMwoYQis
Timing belt grinding machine are fully automatic designed for grinding timing belt both edges, surfaces and tooth groove (3 function in one machine).
Although the base of timing belt is polyurethane or neoprene, which is elastic, its load-bearing strength layer is made of steel wire and glass fiber materials with very low elongation, and the elongation is very small under working tension and variable stress.
Therefore, it is very important for the timing belt and the gear belt teeth correctly match with the timing gear tooth groove without losing step, to achieve transmission without slip, and to obtain accurate transmission ratio.
So you need such a machine to grind the timing belt surface edges and groove tooth.Can do belt width 100mm 150mm 200mm 300 mm 500 mm 600 mm etc.

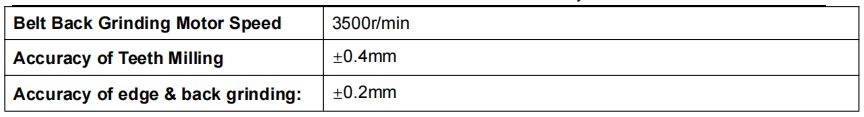

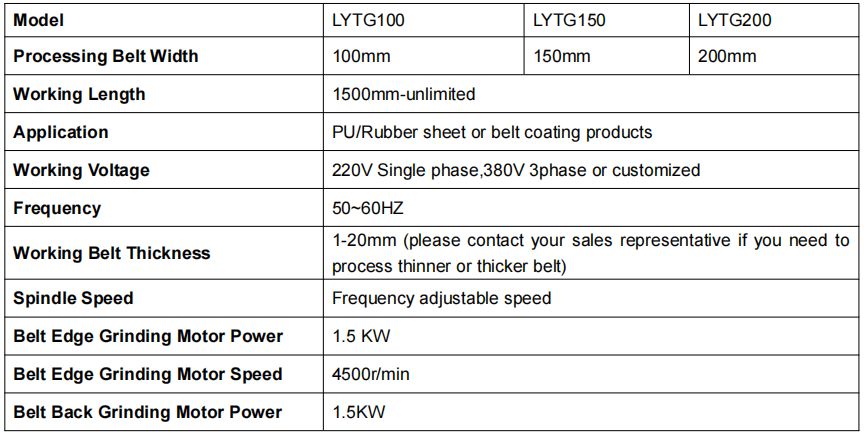

Machine parameters :

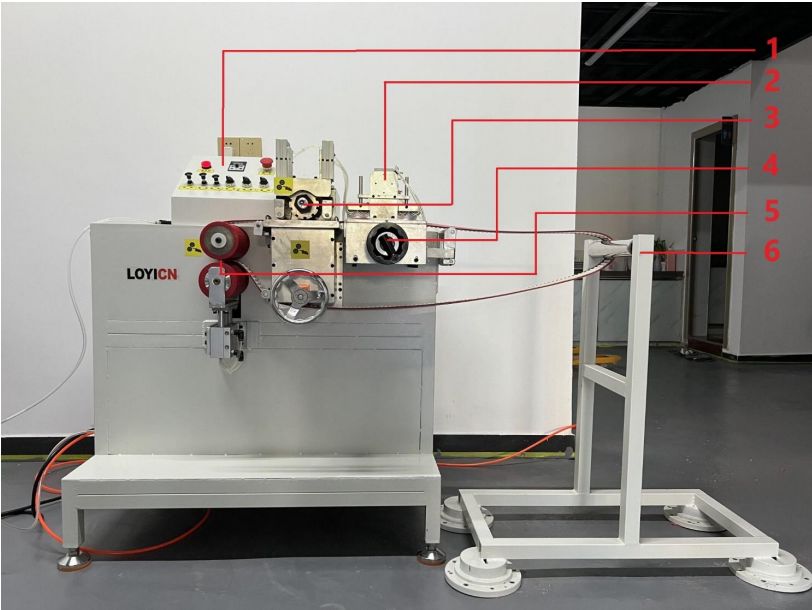

Our offer included :
1. Control Panel: control roller clamps, edging and surface grinding switches, etc.
2. Working area for belt edge grinding
3. Working area for belt back grinding/teeth milling
4. Rotary handle to control grinding accuracy
5. Lifting roller fixture and driving wheel
6. Belt standWork performance Grinding the timing belt surface and edges.
Milling the teeth.

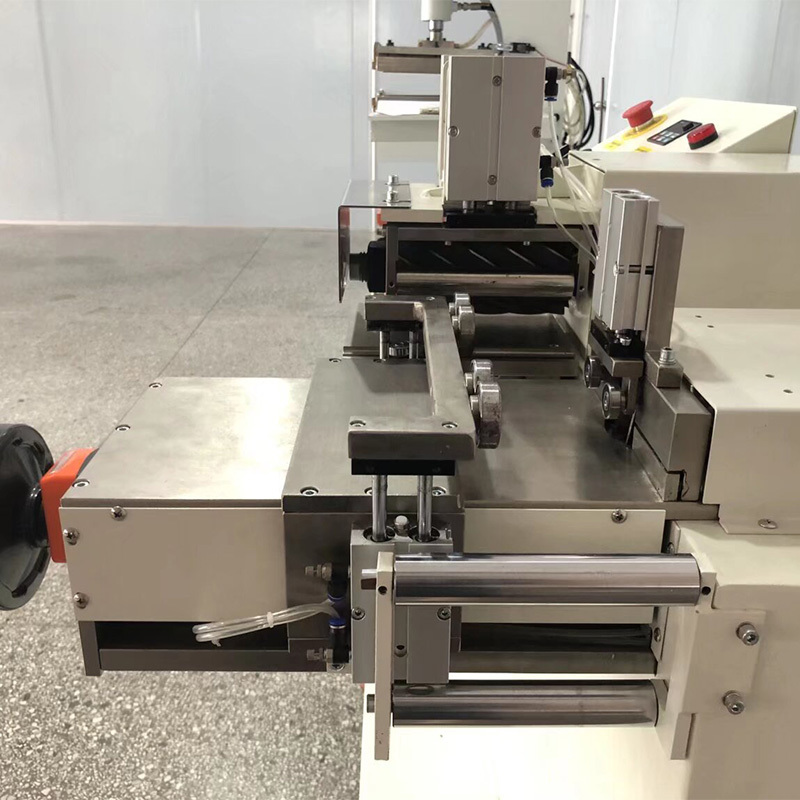

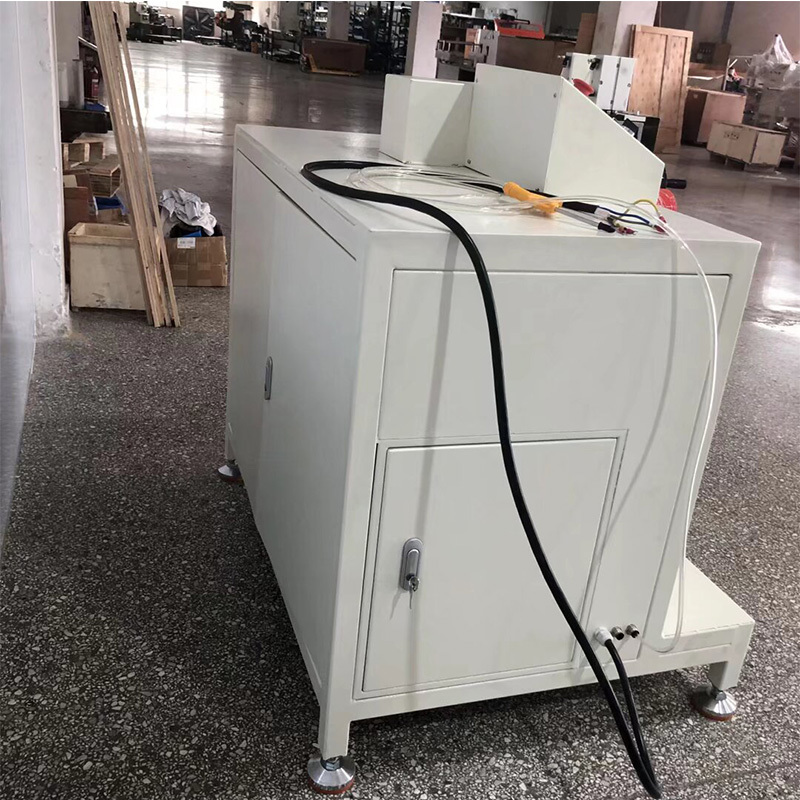

Other machine details.
Kindly contact us if you need any further assistance.
